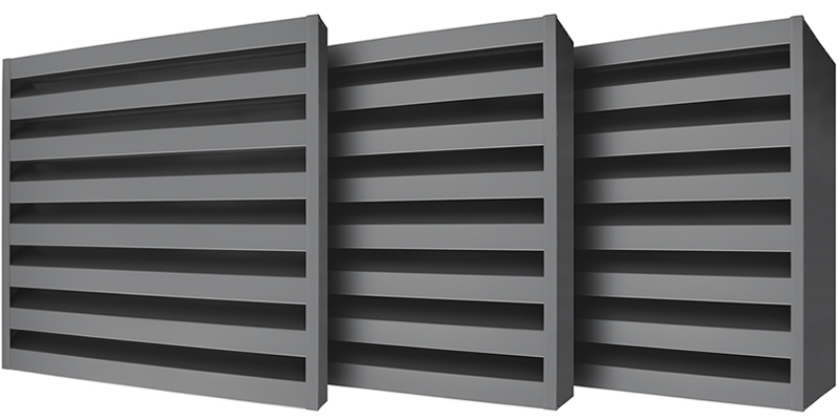

Acoustic Louvre Systems
Acoustic louvre systems are designed to help reduce noise transfer from mechanical equipment and ventilation systems while still allowing effective airflow. They are commonly used within plant screening, service compounds and rooftop applications where sound attenuation is required.
Manufactured from aluminium, acoustic louvres can be fabricated in a range of sizes and configurations to suit project requirements. Powder-coated finishes are also available, allowing the systems to integrate seamlessly with surrounding architectural elements.
Click the link below to add the Acoustic Louvre Systems to your NBS specification
Acoustic Louvre Systems
Materials
- Frame & Blades-1.5mm Galvanised sheet • Acoustic Medium-Tissue faced 45kg/m2
- Non toxic mineral wool (packed to +10% compression to eliminate voids)
- Perforated galvanised sheet to rear of blades
Dimensions
The AVS150, AVS275, AVS300 and AVS550 provide an air passage with intervening acoustic infill blade. Product depth is 150 mm, 275 mm, 300 mm and 550 mm. Generally a maximum panel size is 2.5 m.
Options
- Perimeter flashings to suit application
- Metal or aluminium bird guard
- HDPE insect screen
- Blanking plate as required
- Flanged or glazing outer frame
Weights
- AVS150 - approx 30 kg/m2
- AVS275 - approx 45 kg/m2
- AVS300 - approx 50 kg/m2
- AVS300 Chevron - approx 50 kg/m2
- AVS550 Chevron - approx 90 kg/m2
