AVS50DR Drainable Louvre

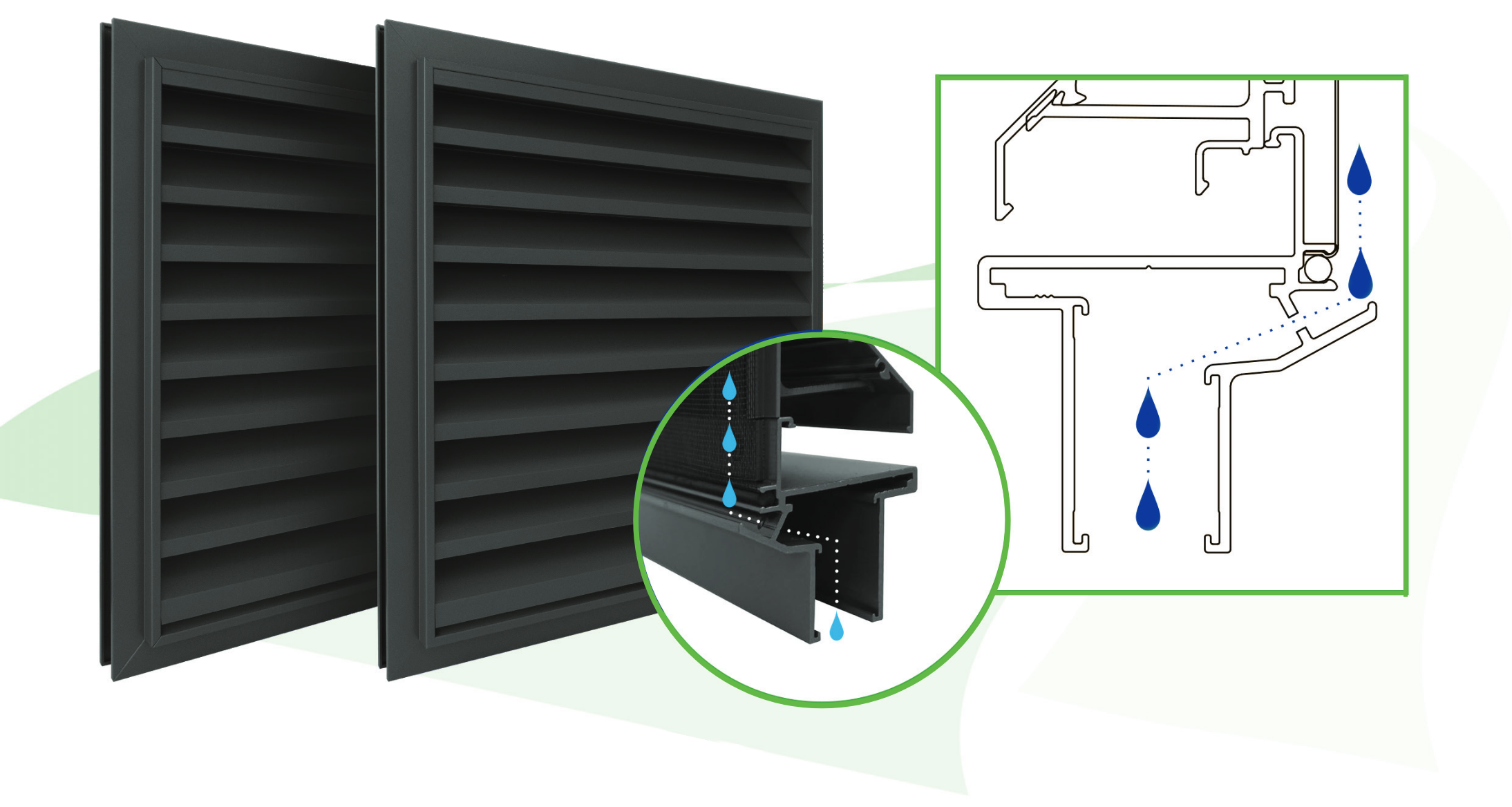

The AVS50DR is a drainable aluminium louvre system developed for applications where both airflow and rain defence are important. The drainable blade design helps manage water penetration, making the system suitable for more exposed external environments.
At Finish Architectural, the AVS50DR can be manufactured to bespoke dimensions and finished to suit individual project requirements. Ideal for ventilation zones, plant screening and external service areas, the system combines performance, durability and flexibility.
Click the link below to add the AVS50DR Drainable Louvre to your NBS specification
AVS50DR Drainable Louvre
Materials
- Extruded Aluminium alloy profiles to 6063 T6
- Profile thickness 1.5 mm
- Mechanically jointed with Zintec corner chevrons
Performance
- Class 'A' weather rating with Fibreglass Insect Mesh
- Class 'B' weather rating with Stainless Steel Insect Mesh
- 50% Free area based on louvre core (excludes top and bottom blade arrangements and any intervening blade carrying profiles)
- Mean Ce Factor 0.202 (Class 3)
Options
- 24 or 28 mm Glazed-In Outer Frames as standard
- Flyscreen Options include External Grade Fibreglass as standard or Stainless Steel
- Enhanced Security Option
- Blanking Panels - thermal (composite) or simple sheet blanking
- Birdguard
Dimensions
- 32 mm Blade Pitch
- Product depth 66 mm o/all
- Glazed-in outer frames to suit 24 & 28 mm as standard
- Glazing rebate height 29 mm
