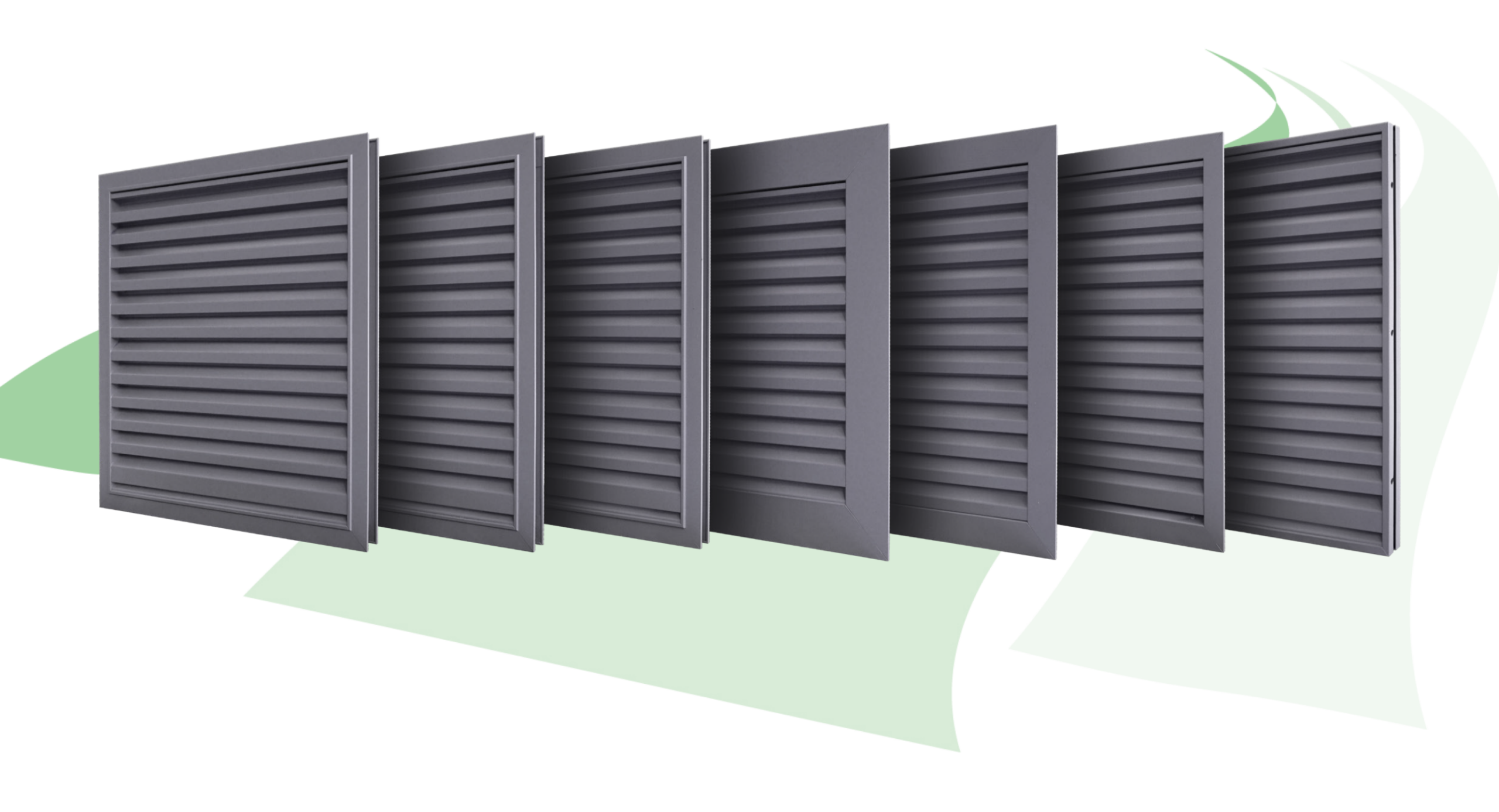

AVS32 Aluminium Louvre
The AVS32 aluminium louvre system is a versatile ventilation solution suitable for a wide range of architectural and construction applications. Manufactured from durable aluminium, the system provides effective airflow while maintaining a modern and streamlined appearance.

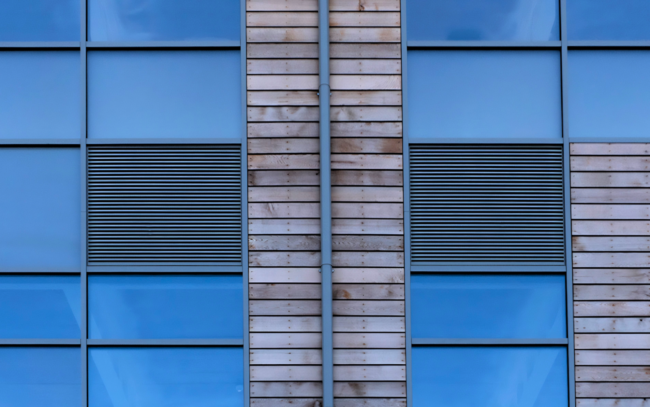

At Finish Architectural, the AVS32 can be fabricated to suit bespoke project requirements, with a range of sizes, configurations and powder-coated finishes available. Suitable for plant screening, external wall ventilation and architectural detailing, the system offers a practical and durable ventilation solution.
Click the link below to add the AVS32 Aluminium Louvre to your NBS specification
AVS32 Aluminium Louvre
Materials
- Extruded Aluminium alloy profiles to 6063 T6 • Profile thickness 1.5 mm
- Mechanically jointed with corner chevrons
Performance
- Refer to BSRIA performance evaluation data
- 50% Free area based on louvre core (excludes top and bottom blade arrangements and any intervening blade carrying profiles)
- Mean Ce and CD Factors refer to performance data
Dimensions
- 32 mm Blade Pitch
- Product depth 38 mm o/all
- Glazed-in outer frames to suit as 24, 28 and 32 mm standard (alternative glazing thickness' available upon request) • Glazing rebate height 24 mm
Options
- 24 or 28 and 32 mm Glazed-In Outer Frames as standard
- 3 Flanged Outer Frame Options
- Box Outer Frame
- Water Drainage Profile (recommended for exposed locations or where minimal water ingress is permissible)
- Fly screen - fitted with Stainless Steel as standard with alternative options available on request
- Birdguard
- Enhanced Security Option
- Blanking Panels - thermal (composite) or simple sheet blanking
